Remote control power switch via web brower 8-outlet/IP PDU
Pembelian Maksimal :
1000
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Sumatera Selatan
Update Terakhir :
11-03-2019 15:12
Dapatkan Spesifikasi Harga
Remote control power switch via web brower 8-outlet/IP PDU Produk Terbaik dari
PANIO Information Company KVM,video&audio switch,extender,splitter
Detail Produk
|

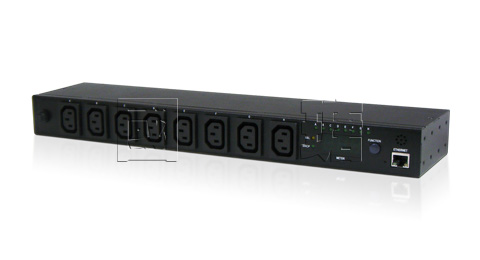

[ PS2308 ] 8-Port Power Distribution Unit-230V
The PDU is an Internet ready device designed and is equipped with an intelligent currentmeter (True RMS) that will indicate the total power consumption of a power strip. The PDU offers an easy set up and user-friendly communication software. This software provides the function that assistant manager to remotely monitor the multiple PDU power consumption to realize the total current power consumption and utilization for the enterprises.Schedule:Control the assigned outlet by pre-set schedule.
|
|
| |
 |
|
|
Built-in web server, manager can real time to monitoring the current consumption of the power strip.
|
|
|
Build-in true RMS current meter.
|
|
|
Setup easily, meter can read the IP address directly.
|
|
|
Homepage support SSL.
|
|
|
Provide audible alarm when the power consumption over the threshold of warning and overload.
|
|
|
Send the email and traps when the power consumption exceed the trigger value of warning or overload to the PDU.
|
|
|
Provide utility, it can monitor a large mount of PDU at the same time.
|
|
|
Support the SNMP and provide MIB for the PDU to be monitored by NMS.
|
|
|
Provide per outlet power protection by the circuit breaker.
|
|
|
Real time to control outlets of PDU.
|
|
|
Indicate outlets status with LED.
|
|
|
Support power on sequence.
|
|
|
Option accessory can support temperature and humidity detection.
|
| |
| |
 |
| |
| Login: |
| Input the PDU IP address in web browser.Default ID is snmp. Password is 1234. |
 |
| |
| Information: System |
Indicate PDU system information, including:
Model No
Firmware Version
MAC Address
System Name
System Contact
Location |
 |
| |
| |
|
| |
| |
 |
| |
 |
| |
| |
 |
 |
1 x PS2308 Power Distribution Unit. |
|
1 x CD-ROM, it contains:
‧User Manual.
‧PDU Software.
‧MIB: Management Information Base for Network. (PDUMIB.mib)
‧Adobe Acrobat Reader. |
|
1 x Power Cord |
|
1 x Rack mount Brackets. |
|
| |
| |
 |
| |
|
Model
|
PS2308 |
|
Output
|
(8) IEC320 C13
|
|
Input
|
(1) IEC320 C20 Inlet;
Enclosed IEC320 C19 to C14 Power Cord 3 Meters long
|
|
Protection
|
(1) 10 AMP Circuit Breaker
|
|
SSL Indication
|
(1) Yellow LED
|
|
DHCP Indication
|
(1) Green LED
|
|
Network
|
(1) RJ45 for Ethernet
|
|
Current Meter
|
3 Digits Meter
Range: 0A ~ 20 A
Resolution: 0.1A
Precision: +/-2%+/-0.1AMP
|
|
Nominal Voltage
|
230V
|
|
Voltage
|
200V~240V full range
|
|
Frequency
|
50/60HZ full range
|
|
Max. Output Current
|
10 Amp
|
|
Temperature
|
0 ~ 40 Celsius degree
|
|
Humidity
|
0% ~ 90%
|
|
Size
|
90 x 432 x 44 mm
|
|
Weight
|
3 kg
|
|
|
