Support combo interface for connecting to PC ports conveniently.
|
|
Support full CAT-5 interface on all PC ports for reducing KVM cable bulk.
|
|
Support one local console or plus optional one remote console (CAT-5 or IP).
|
|
CAT-5 console up to 150 meters away from KVM switch with superior auto-adjust RGB focus control capability.
|
|
Very High Video Quality, DDC2B.
|
|
Plug-and-Play monitor support.
|
|
Software free, easy installation, fully plug-and-play design.
|
|
Firmware upgradeable and easy maintenance.
|
|

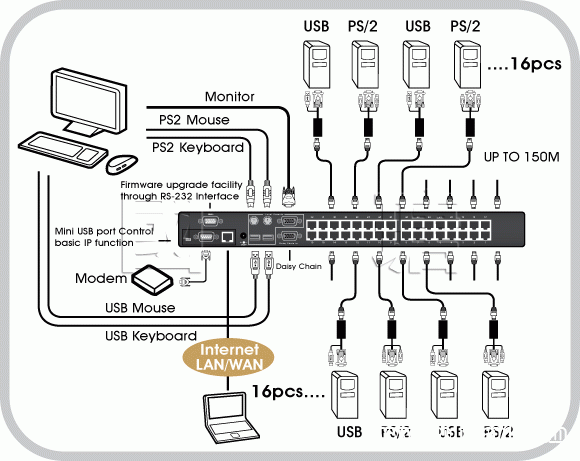

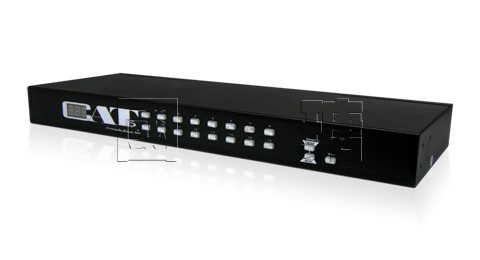

32 ports one-Console CAT-5 KVM switch is 19” rack mount size design.
|
|
Support full CAT-5 interface on all PC ports and reducing KVM cable bulk.
|
|
Support two kinds of Transmitter ---- CAT-5 to PS2/VGA converter and CAT-5 to USB/VGA converter.
|
|
The maximum CAT-5 cable length between PC and this CAT-5 KVM switch is 150 meters.
|
|
Support Hot key adjusts VGA quality.
|
|
Support Microsoft Intel mouse, Microsoft Intel mouse Explorer, Logitech Net Mouse or the other fully compatible MS mice.
|
|
Support DOS, Win3.X, Win95/98/98SE/2000/ME/XP/Vista/7, WinNT, Netware, Unix,Linux.
|
|
Support iMAC, Power MAC and Sun Microsystems with USB port.
|
|
Very High Video Quality of local console - Up To 1920X1080.
|
|
Easy PC selection via On Screen Display (OSD) Menu, Push Buttons, Hot Keys.
|
|
Support two layers password security protection and search PC server name.
|
|
Auto Scan Mode for monitoring PCs and flexible Scan time from 005~255 seconds.
|
|
Keyboard status restored when switching PCs.
|
|
LED Display for easy status monitoring.
|
|
Buzzer sound for switching port confirmation.
|
|
Built-in one extra daisy chain port and no waste any PC port.
|
|
Support 1+1 console.
|
|
Made in Taiwan.
|
