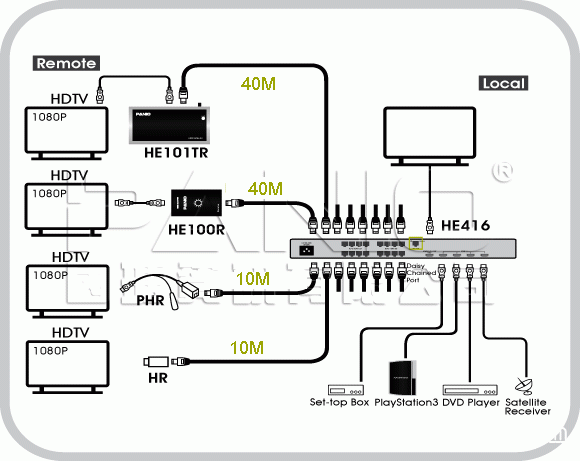

Through the CAT6 UTP cable to extend the 16 groups HDMI signal synchronized.
|
|
All In One Cable:Different from the other extender the HE416 extend the HDMI signal only in one cable.
|
|
Suitable for surveillance system, DVR, Outdoors multimedia display, Digital display, Home appliance decorate ,Wiring, Door control,Projector extender and so on.
|
|
Full-featured HDMI switch that switching the different HDMI signal easily.
|
|
Module hardware design supports Plug and Play.There is no system compatibility issue.
|
|
PC selection via automatic and manual switch or remote control.
|
|
Scanning and browsing the channel of PC Power on automatic.
|
|
Receive the remote signal through the built-in IR receiver or External remote.
|
|
The LED display the System connection status.
|
|
Used the latest HDMI1.3 specification and compatible down the lower specification. The digital single ascent to 36 bit. Degrade the image more outstanding.
|
|
Use the most senior display chip of ADI8197 that own the highest compatibility.
|
|
Support the high resolution: 480i, 480p, 720p, 1080i, 1080p.
|
|
With Auto Scan function, the interval time is 20, 40, 60, 80 seconds.
|
|
Adjust the video quality through the built-in 16 parts electronic video adjustment.
|
|
There is a fine tune button on the long distance receiver that make the HDMI signal more clearly on the remote display.
|
|
The below shows the resolution of the HE416 supported:
A. The short distance receiver:720p/1080i@ 25m ;1080p@ 15m .
B.The long distance receiver :720p/1080i@ 90m ;1080p@ 70m .
|
|
Made in Taiwan.
|
|
Remark: Suggest using UTP Cat6 cable, use other poor quality cable may lead to signal weaken that unable to achieve the satisfactory performance.
|
