Jual VAS116 16-Port VGA Switch with Audio & Remote
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Sumatera Selatan
Update Terakhir :
04-07-2017 12:26
Dapatkan Spesifikasi Harga
Jual VAS116 16-Port VGA Switch with Audio & Remote Produk Terbaik dari
PANIO Information Company KVM,video&audio switch,extender,splitter
Detail Produk
| |
 |

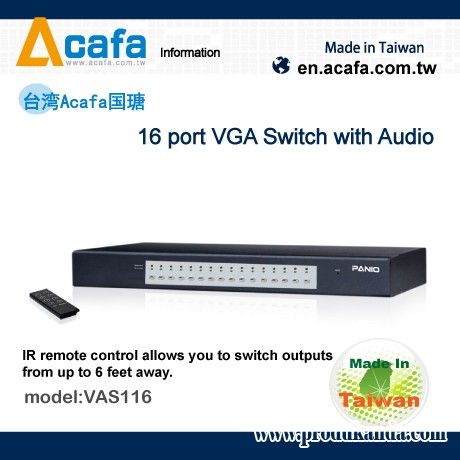

VAS116 16-Port VGA Switch with Audio & Remote
VAS116 dispays Video inputs from 16 computers on a single monitor or projector with Audio Function support. VAS116 is euipped with IR remote controller to control this VGA switch by 6 feet away. From use in test bench facilities, data centers and help desks, to classrooms, and multi-media centers, ACAFA 16 ports VGA Switch & Extender with Audio & Remote delivers both performance and value. |
|
| |
 |
|
|
Display video input from 16 computers on 1 monitors or projectors.
|
|
|
Can be used as the sharing device for projector.
|
|
|
PC selection via push buttons or IR remote control.
|
|
|
IR remote control allows you to switch outputs from up to 6 feet away.
|
|
|
Support Daisy-chain to expand the number of computers connection up to 3 layers.
|
|
|
Enhance video signal enhancement allows monitor to be placed up to 210 feet away.
|
|
|
Supports video resolutions up to 2048x1536.
|
|
|
Suitable for VGA, SVGA, XGA, SXGA, UXGA, and Multisync monitors.
|
|
|
Made in Taiwan.
|
| |
 |
| |
 |
| |
| |
 |
|
|
1 x VAS116 |
|
|
1 x IR Remote Controller |
|
|
1 x DC 5V 1000mA Power Adaptor |
|
|
1 x User's Manual |
|
| |
| |
 |
| |
|
Model
|
VAS116
|
|
Connector Ports
|
Video In
|
1x HDB-15 Female
|
|
Video Out
|
16 x HDB-15 Female
|
|
Audio In
|
1 x Audio jack Female
|
|
Audio Out
|
16 x Audio jack Female
|
|
LEDs
|
|
16 (Red )
|
|
|
16 ( Green )
|
|
Selection Method
|
Push Button or IR Remote Control
|
|
DDC, DDC2,DDC2B monitor
|
Yes (Max. Resolution up to 2048 x1536) @ 85Hz
|
|
Power
|
DC5V 1A
|
|
Environment
|
Operating Temp
|
0°C ~ 50°C
|
|
Storage Temp
|
-20 °C ~ 60°C
|
|
Humidity
|
0 ~80% RH, NC
|
|
Physical Properties
|
Housing
|
Metal
|
|
Dimensions ( L x W x H )
|
44 x 15.7 x 4.5 (cm)
|
|
|
|
|
