Jual 8-Port PS/2&USB Combo Free A+ KVM Switch-Taiwan ACAFA KF08U Produk Terbaik dari
PANIO Information Company KVM,video&audio switch,extender,splitter
Detail Produk
 |

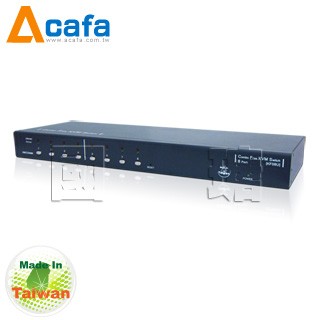

ACAFA KF08U 8-Port PS/2&USB Combo Free A+ KVM Switch
ACAFA offers an ideal enterprise 8 ports KVM switch solution for company server room or testing facilities.PANIO Combo Free A+ 8 ports USB & PS/2 KVM switches feature the patented design of the availability of USB & PS/2 interface connection, user friendly OSD utility, Daisy chain function, and the flexibility of Firmware-Upgradable function. |
|
| |
 |
|
|
Console your Keyboard/Mouse via PS/2 and/or USB at will.
|
|
|
Connect computers via PS/2 and/or USB at will.
|
|
|
Supports Windows 98SE/ME/2000/XP/Vista/7/2003 Server, Linux, Mac OS9/OSX and Sun Micro System
|
|
|
On-Screen-Display (OSD) & Cascade Chain functions.
|
|
|
OSD is intuitive menus driven for quick and efficient navigation.
|
|
|
Supports Daisy chain with 3 level cascades: up to 3 levels; control up to 64/256/4096 PCs, from a single console; cascaded units don't need special configuration.
|
|
|
Emulates PS/2 or USB keyboard on each PC to allow your computers to boot normally without a keyboard error.
|
|
|
Supports hot-pluggable. All devices connected to the KVM can be added or removed at any time, without shutting the unit down.
|
|
|
Supports 3 types of switching：
Hardware Push Button.
Hot-Keys on PS/2 and/or USB of keyboard.
Menu driven OSD (On Screen Display).
|
|
|
Supports Auto-Scan function to switch video inputs automatically among computers in preset intervals sequentially by OSD menu driven.
|
|
|
Supports LED display for PC and/or server status monitoring.
|
|
|
Supports VGA resolutions up to 2048 x 1536.
|
|
|
Supports Beeper during Switching enabled.
|
|
|
Fully compliant with the USB 1.1/ 2.0 specification.
|
|
|
Rack Mountable in 19” system tack (1U).
|
|
|
KVM firmware is upgradeable via on-board mini-USB download connector and external mini-programmer.
|
|
|
Patent No. TW M 284961, DE 20 2006 002 295.3, ZL 2005 2 0132700.2
|
| |
| |
 |
| |
 |
| |
| |
 |
 |
1 x KF08U |
|
8 x Custom combo 4-in-1 cable-1.8m (PS/2+USB KVM Cable) |
|
1 x Rack Mount Kit |
|
1 x Power adaptor |
|
1 x User’s Manual |
|
| |
| |
 |
| |
|
Model/Function
|
KF08U
|
|
Number Of Computers Controlled
|
8
|
|
Selection Method
|
Push Button and Hot-Key (PS/2 / USB Keyboard)
or On-Screen-Display (OSD)
|
|
LEDs
|
Red for PC Selection
Green for PC On-Line ready
|
|
PC Connectors
|
Video
|
8 x HDB-15 female
|
|
(KB/MS)
|
( PS/2 & USB signal combined )
|
|
Console Ports
|
Keyboard
|
1 x 6 pin mini-DIN female
|
|
Mouse
|
1 x 6 pin mini-DIN female
|
|
Video
|
1 x HDB-15 female
|
|
Keyboard
|
1 x USB – A type female
|
|
Mouse
|
1 x USB – A type female
|
|
Auto-Scan Interval
|
Adjustable time setting by OSD menu driven
|
|
DDC, DDC2,DDC2B monitor
|
Yes (Max. Resolution up to 2048 x1536 )
|
|
Hot Swappable
|
Yes
|
|
Operating systems supported
|
Windows 98SE/ME/2000/XP/Vista/7/2003 Server, Linux Mac OS9/OSX and Sun Micro System
|
|
Power
|
By external power adaptor
|
|
Dimensions (L X W X H)
|
44 x 15.7 x 4.5 cm
|
|
Unit Weight
|
1750g
|
|
Housing material
|
Metal
|
|
Operating Temperature
|
32~ 122 ° F (0~ 50 ° C )
|
|
Humidity
|
0%~80%RH
|
|
Firmware upgrade connector
|
Mini USB female
|
|
|
