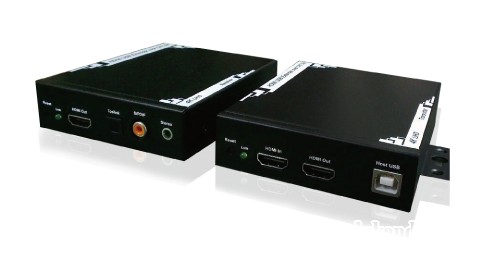

4K2K HDMI HDBasseT Extender with USB/Audio Support Touch Screen

[HDU700] is the unique and high-performance HDBaseT AV/PC Extender supporting HDMI, USB HID, high-quality

S/PDIF Audio Line Out and IR at the best strengthened competitive price in the market. By using HDBaseT and PANIO’s

advanced technology HDU700 features up to 70m (210ft) extension of uncompressed 4K2K & 1080p HDMI video, True

USB HID Emulation, triple Audio Line Outs (TOSLINK/SPDIF/Stereo) and bi-direction IR via a single CAT-5e/6 cable.

Being capable of HDMI & USB HID extension, HDU700 is also ideal for interactive digital signage, KVM extension besides AVextension.

	Adopts HDBaseT technology for HDMI extension
	No software or driver required for USB HID ( Human Interface Device ) extension,
	Plug-and-Play using inexpensive CAT.5e/6/7 cables
	Supports HDMI Deep color & Full 3D, up to 4K/2K@30
	HDTV compatible ( 720p, 1080i, 1080p, 4K2K )
	Extends transmission up to 70m (230ft) at Full HD 1080p@60, 48-bit,
	and 40m (130ft) at 4K2K@30, 24-bit
	HDCP & EDID compliant-pass thru
	Support CEC and auto-equalization
	Supports High Definition Audio (HD) surround sound
	Supports triple Audio Line Outs ( Toslink / Coaxial / Stereo )
	Bi-directional IR extension, full range from 20KHz to 60KHz
	Supports HDMI local loopback in Transmitter (TX) box
	Bracket mountable for easy and robust installation
	Made in Taiwan

MODLE NAME			HDU700 (Transmitter)	HDU700 (Receiver)
I/O Ports	HDMI OUT		HDMI (Female)	HDMI (Female)
	HDMI IN		HDMI (Female)	N/A
	USB		Type A / Type B	Type A
	Toslink audio out		N/A	JIS F05
	S/PDIF audio out		N/A	RCA Jack
	Stereo audio out		N/A	Earphone Jack
	Extension Line		RJ45	RJ45
Audio			Supports High Definition Audio (HD) , Surround Sound, Dolby TrueHD, uncompressed 7.1ch digital, LPCM 2-ch
IR			Bi-directional 20KHz to 60KHz
LED Indicators		Link Status	Red LED
DDC Supported			DDC, DDC2, DDC2B
Extension Cable Type & Length			CAT-5e/6/7 , Max. Length : 70m (for 1080p) / 40m (for 4K/2K)
Max. Video Resolution			4K2K@30Hz@24-bit // 4K/2K@60Hz@24-bit@4:2:0 pixel format
Wide Screen Supported			Yes
OS Compatibility			OS Independent
Power Supply			External DC 5V / 2A Power Adapter
Dimension ( L x W x H )			115 x 91 x 28 mm
Weight			350g	425g
Housing material			Metal
Operating Temperature			32 - 122 F ( 0 - 50 C )
Humidity			0% - 80%
