HDMI Chainable Multiple Mixing Signals output Extender over Network with RS232/IR

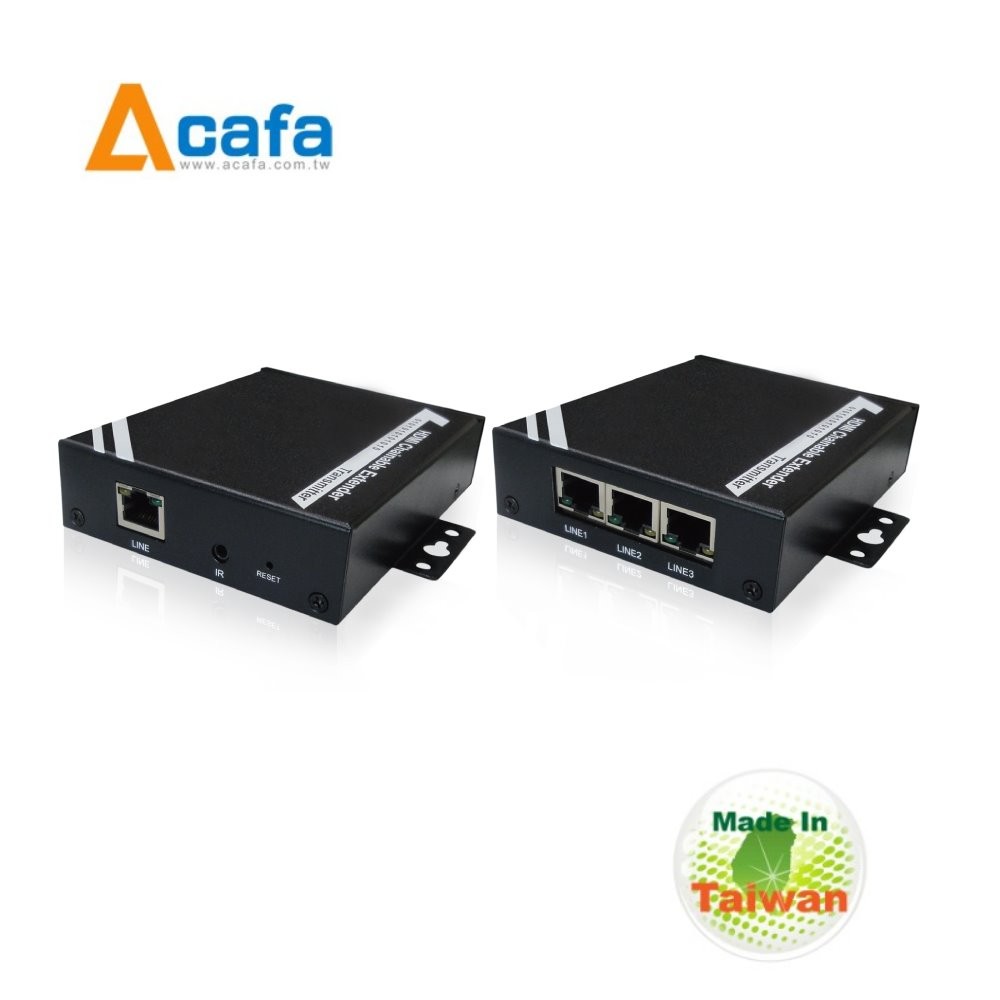

[HD1000-1002] is the high performance, cost-effective HDMI Extender over CAT. 5e/6 up to 100m at the best strengthened competitive price in the market. HD1000 / 1002 supports Full HD 1080p video and cascaded-chainable with high flexibility for expansion.

	Uses easy to install, inexpensive CAT. 5e/6 cables
	Cascaded-chainable receiver up to 10 layers(1000M 1080P)
	HDMI Digital Audio/Video extended distance up to 100 meters (330 feet) between Transmitter(HD1000) and Receiver(HD1002), supports with HD video 1080P and PC resolution 1920x1200@60Hz signals, over CAT.5e/6 cabling.
	Supports video high resolution up to 1920x1080, 1080p
	Supports HDMI 1.3a
	HDCP compliant
	Supports Default EDID, and Selected EDID modes.
	HDTV compatible (720p, 1080i, 1080p)
	Supports RS-232 (Serial)
	IR (Infrared remote) enabled
	Supports Local HDMI monitoring port
	No software / driver installation required.
	Each receiver (HD1002) links cascade-chainable 2 receivers(HD1002)
	Rack mountable
	Made in Taiwan.
	Remark: Suggest using UTP Cat6 cable, use other poor quality cable may lead to signal weaken that unable to achieve the satisfactory performance.

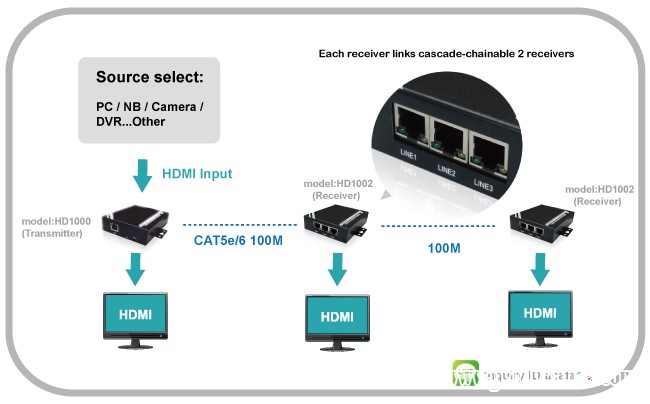

Each receiver (HD1002) links cascade-chainable 2 receivers(HD1002)

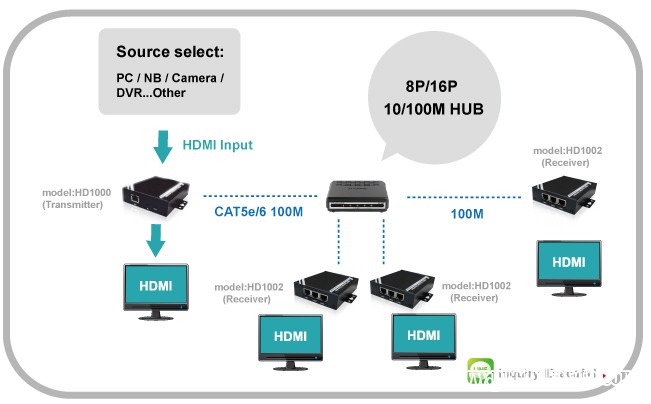

Use lan Switch

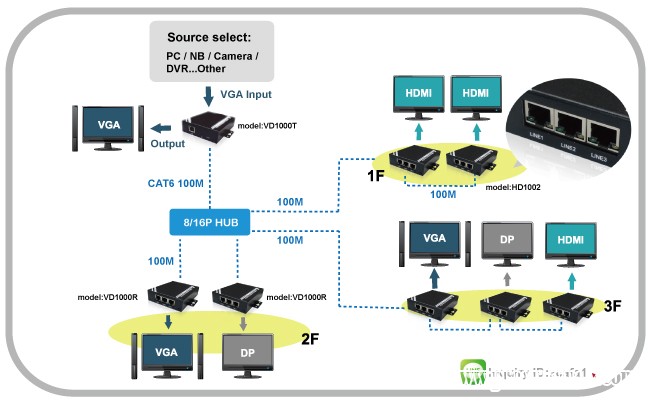

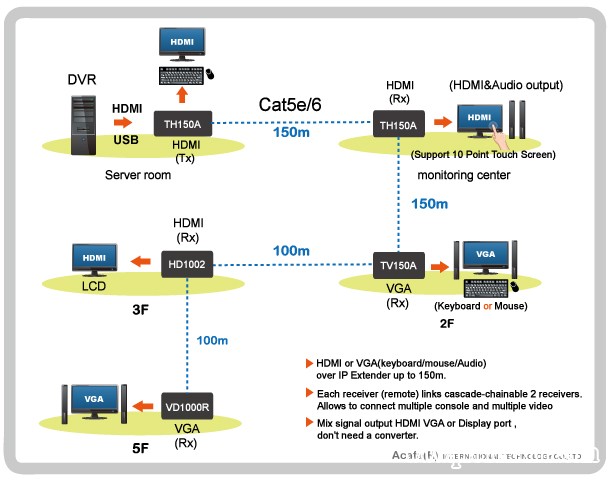

Application


2 X IR Cable	2 X RS232 Cable	2 X DC 5V

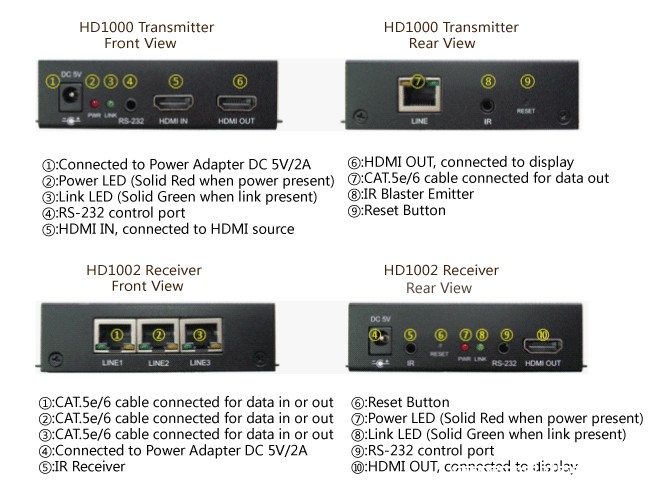

MODLE NAME				HD1000	HD1002
Console Connectors	HDMI Output			HDMI ( Female )	HDMI ( Female )
	RS-232 Control Port			Phone Jack	Phone Jack
PC Connectors	HDMI Input			HDMI ( Male )	N/A
Extension Port	RJ-45			Full HD Video / Audio Extension
RJ-45				1 ( Line Out )	3 ( Line in x1 + Line Out x 2 )
LED Indicators		Local	Power	Left Red LED
			Link	Right Green LED
		Remote	Power	Left Red LED
			Link	Right Green LED
Cascaded-Chainable				N/A	Yes, up to 10 layers
DDC Supported				DDC, DDC2, DDC2B
Extension Cable Type & Length				CAT.5e / CAT.6 Max. Length: 100m
Max Video Resolution				1920x1080@60Hz, Full HD 1080P
Wide Screen Supported				Yes
OS Compatibility				OS Independent
Power Supply				External DC 5V / 2A Adaptor
Dimension ( L x W x H )				115 x 91 x 28 mm
Unit Weight				340g	380g
Housing material				Metal
Operating Temperature				32~ 122°F (0~ 50°C )
Humidity				0%~80%RH
