HD4600 HDMI Switch&Splitter+Multiple Mixing signals Extender Produk PANIO Information Company KVM,video&audio switch,extender,splitter

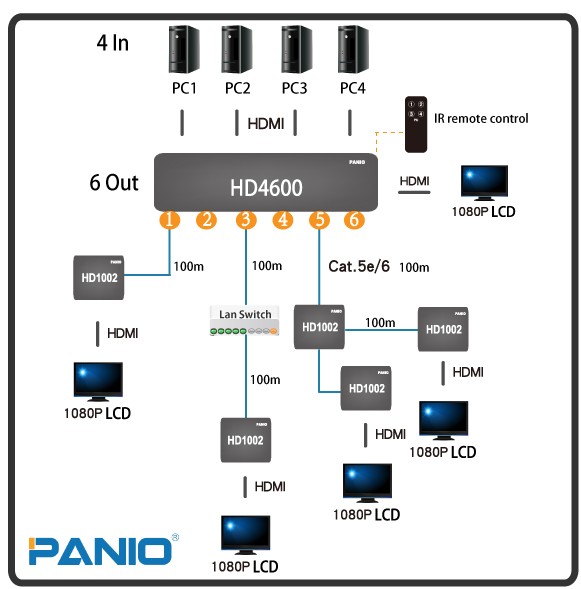

It's the innovative and powerful solution for HDMI Extension. 4 HDMI sources are selectable and each of 6 RJ-45 ports

cascade-chainable receiver which is capable of connecting another 2 receivers. The extended distance is up

to 100m over CAT.5e/6 between transmitter and receiver or receiver and receiver (point-to-point).

	Supports 4 inputs HDMI sources, 6 outputs cascade-chainable extension over CAT.5e/6.
	Extended distance up to 100m (point-to-point).
	Supports Full HD 1080p.
	IR (Infrared Remote) enabled.
	Each receiver (remote) links cascade-chainable 2 receivers.
	Supports RS-232 (serial).
	Supports stereo audio.
	HDMI sources selectable by select button or remote control.
	Supports local HDMI monitoring port.
	Made in Taiwan.

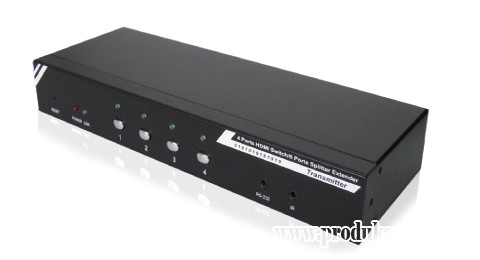

Model		HD4600-Transmitter
ConsoleConnectors	HDMI Output	1x HDMI (Female)
	RS-232 Control Port	3.5Ø jack
AV source	HDMI Input	4 x HDMI (Female)
Extension Port	RJ-45	Full HD 1080p AV Extension
RJ-45		6 (Line Out)
Audio		Supports Stereo Audio
IR		Unidirectional
LED Indicators	Power	Red LED
	Link	Green LED
	Selected AV source	Green LED for selected AV source
AV Source select Button		4
DDC Supported		DDC2B
Extension Cable Type & Length		CAT.5e / CAT.6 Max. Length: 100m
Max. Video Resolution Supported		Full HD 1080p
Housing material		Metal
Operating Temperature		32 - 122°F ( 0 - 50°C )
Power Supply		External DC 5V / 2A Power Adaptor
Dimension (L x W x H )		275 x 98 x 38 mm
Humidity		0% - 80% RH
