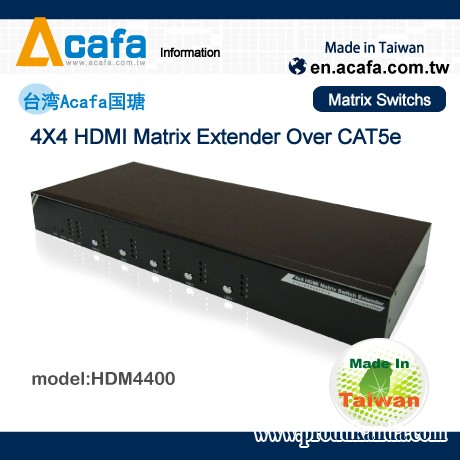

ACAFA HDM4400 HDMI Matrix Switch +Multiple Mixing signals Extender Produk PANIO Information Company KVM,video&audio switch,extender,splitter

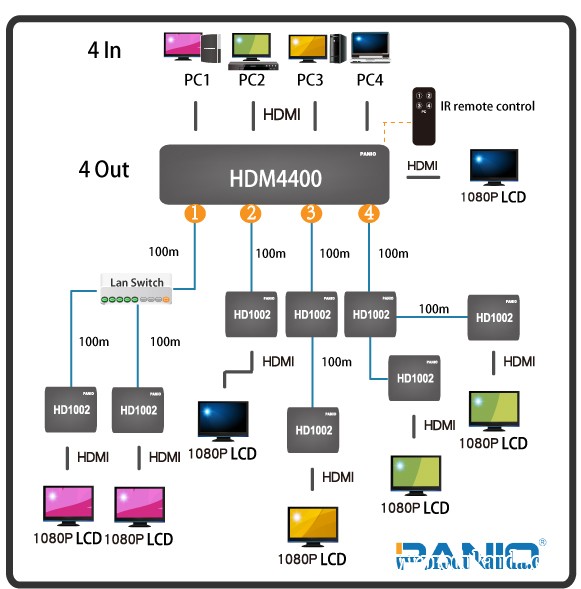

is the powerful solution for 4 x 4 HDMI Matrix Switch Extender over CAT.5e/6. Each receiver is capable of connecting

another 2 receivers for further 100m (point-to-pint). The HDMI sources are selectable by front buttons or IR remote

control. Easy and convenient to control the long-distance RS-232 devices over CAT.5e/6 and real-time monitor

each content of 4 HDMI sources at local site.

	Supports 4 HDMI sources and the same or different contents can be shown on remote 4 HDMI displays at the same time.
	LED indicators for connection status.
	Supports HDMI 1.3, HDCP compliant.
	Supports resolution up to Full HD 1080p, 1920 x 1080 @60Hz.
	Each receiver (remote) links cascade-chainable 2 receivers.
	Extended distance over CAT. 5e/6up to 100m (point-to-point).
	HDMI sources selectable by front buttons or IR remote control.
	IR (Infrared Remote) enabled.
	Supports RS-232 (serial).
	Supports Local HDMI monitoring and Audio enabled.
	Made in Taiwan.

Model		HDM4400-Transmitter
ConsoleConnectors	HDMI Output	1x HDMI (Female)
	RS-232 Control Port	4 x3.5Ø jack
HDMI source	HDMI Input	4 x HDMI (Female)
Extension Port	RJ-45	Full HD 1080p AV Extension
RJ-45		4 (Line Out)
Audio		Supports Stereo Audio
IR		Unidirectional
LED Indicators	Power	Red LED
	Link	Green LED
	Selected HDMI source	Green LED for selected AV source
HDMI Source select Button		5
DDC Supported		DDC2B
Extension Cable Type & Length		CAT.5e / CAT.6 Max. Length: 100m(point-to-point)
Max. Video Resolution Supported		Full HD 1080p,1920 x 1080 @60Hz
Housing material		Metal
Operating Temperature		32 - 122°F ( 0 - 50°C )
Power Supply		External DC 12V /5A Power Adaptor
Dimension (L x W x H )		440 x205 x42 mm
Humidity		0% - 80% RH
