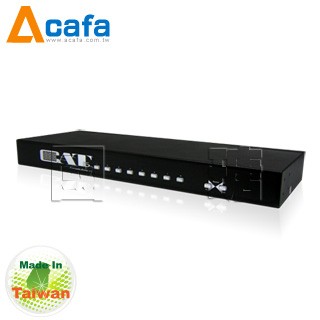

1-Local Console 8-port CAT5 Combo KVM switch

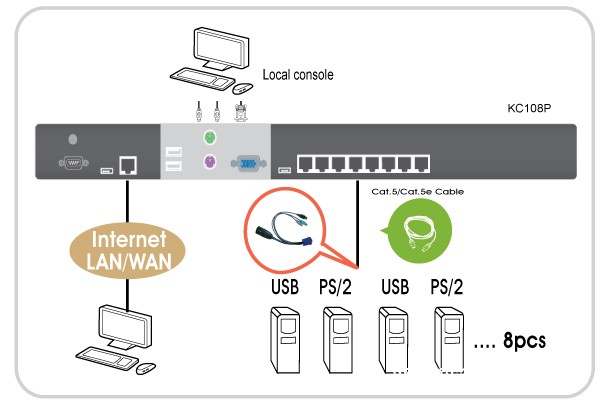

Each server can be 100 meters away from this KVM Switch by CAT.5 UTP cable

Consoles your Keyboard / Mouse via PS/2 and/or USB at will

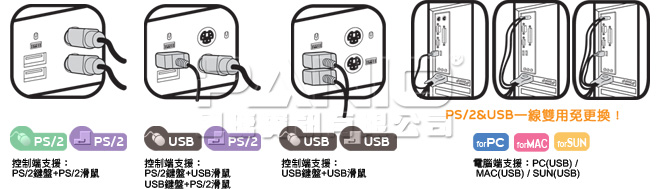

Connects computers via PS/2 and/or USB at will

Supports DDC, DDC2B monitors and max. up to resolution 1920x1200@60Hz

Full control under all OS, in BIOS level, during boot, or at Blue Screens

On-Screen-Display (OSD) & Cascade Chain functions

OSD is intuitive menus driven for quick and efficient navigation.

Supports cascade chain with 3 level cascades: up to 3 levels; control up to 16 / 256 / 4096 PCs , from a single console; cascaded chaining units does not need special configuration.

Emulates PS/2 or USB keyboard on each PC to allow your computers to boot normally without a keyboard error.

Supports hot-pluggable. All devices connected to the KVM can be added or removed at any time, without shutting the unit down.

Supports 3 types of switching: •  Hardware Front Push Buttons. •  Hot-Keys on PS/2 and/or USB of keyboard. •  Menu driven OSD (On Screen Display).

Supports Auto-Scan function to switch video inputs automatically among computers in present intervals sequentially by OSD menu driven.

Supports LED display for PC and/or Server status monitoring.

Supports Beeper during Switching enabled. .

Fully compliant with the USB 1.1/ 2.0 specification.

Rack Mountable in 19” system tack ( 1U ).

No additional software necessary on client console side .

KVM firmware is upgradeable via on-board mini-USB download connector and external mini-programmer.
