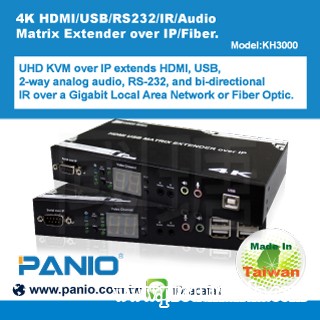

KH3000 is the UHD KVM over IP extends HDMI, USB, 2-way analog audio, RS-232, and bi-directional IR over a Gigabit Local Area Network or Fiber Optic.

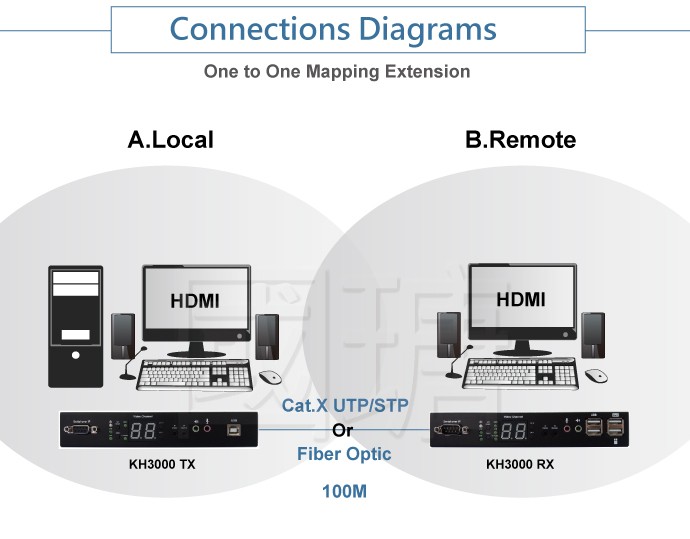

The Sender and Receiver units can be automatically or manually configured to unique IP

addresses to allow the connection of multiple Senders and Receivers to the same network.

Multiple Receiver units can simultaneously connect to any Sender unit within the network to create a virtual cross-point matrix of up to 16 Senders and multiple Receivers .

Features:

1.Extends 4K HDMI, USB, RS-232, bi-directional stereo analog audio, and bi-directional IR over IP / SFP

2.Matrix switching extension over IP.

3.Supports resolutions up to 4096X2160 UHD.

4.Supports video wall over IP.

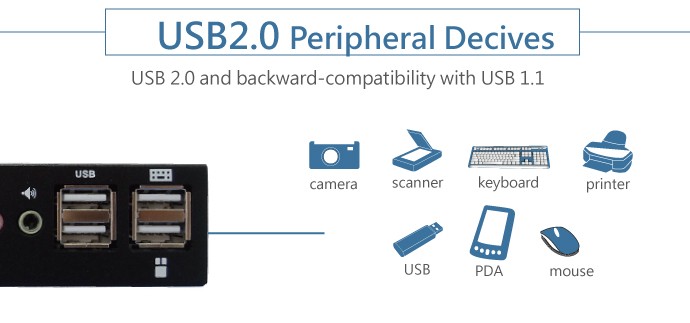

5.USB 2.0 and backward-compatibility with USB 1.1

6.Support both of interlaced and progressive display modes.

7.Web UI shows the connection status included all of Tx and Rx.

8.Supports multi-consoles to max 255 PCs ( multi-console KVM Extender ) .

9.Support IR remote control for video channel setting.

10.Field-upgradable firmware via web server interface

11.The transmitter unit supports HDMI in and monitoring HDMI out synchronized.

12.Remotely away operational KVM USB switching to selective PC/sources.

13.Extend by CatX or Fiber

14.PoE supported ( Optional ).

15.Made in Taiwan.
