4 Port HDMI KVM Switch with USB3.0 HUB and Audio & MHL
Is the new generation of KVM Switch with cutting-edge MHL chipset and allow the user to control 3 HDMI devices and Android smart phone projected video to monitor screen. HDMI supported and let you enjoy the crystal clear Full HD video and extra high speed by USB 3.0 Hub. Even your Android smart phone recharged power via MHL.
Innovation, Smarter & Faster, KC-341UHA makes KVM Switch redefined.

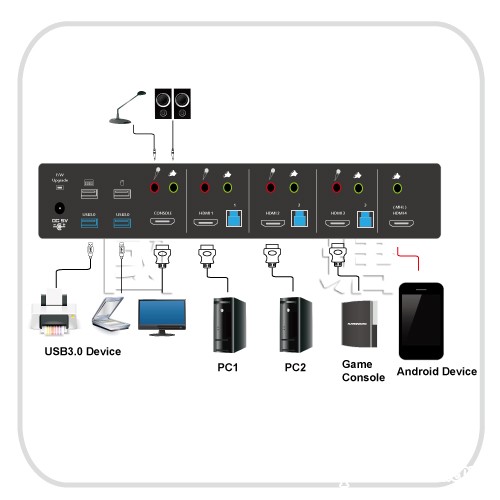

	Controls 3 computers from a single console (keyboard/mouse) over USBconnection by using standard USB cables.
	Supports 1 MHL (Mobile High-Definition Link) smart phone projected displaying via the specific of Micro USB to HDMI and power charged synchronization.
	Supports USB keyboard/mouse.
	Compliant with USB Specification Revision 3.0 and USB Device Class Definition for HID Revision 1.11.
	Three computers can share two USB 3.0 downstream ports.
	Supports two types of switching: - Push button on front panel - Hot keys on USB keyboard
	LED display for easy status monitoring.
	Supply Microsoft Intellimouse 3 ~ 5 Key Mouse& Microsoft Natural Keyboard Pro series.
	Supports HDMI resolutions up to 1920 x 1200@60Hz, full HD 1080p.
	HDCP compliant.
	Supports Windows 98/98SE/2000/ME/XP/VISTA/7/2003, Linux, MAC OS9/OSX, SUN MICRO Solaris 8 or later.
	Provides USB 3.0 HUB switching in independent method or combination with the host switching (USB HUB Auto-Switch mode).
	Auto-Scan function (Time interval can be adjusted between 5-20 seconds when the Auto-Scan function is enabled)
	.Plug and Play (Windows 98/SE users might need your Windows CD to install the HID driver for USB keyboard/mouse.)

	1 x KU04HA
	HDMI to Micro USB cable (1m)
	USB3.0 cable
	HDMI Cable
	1 x DC 5V 2A Power Adaptor

Model No.		KU04A
Number of USB 3.0 Port		2
Number of MHL Port		1
Number Of HDMI Port		4
Selection Method		Hot Key (USB Keyboard)
		Front Panel Push button
Compliant with HID Version		USB HID 1.11
Compliant with USB Version		USB1.0 / USB1.1/ USB2.0 / USB3.0
PC Connectors	Video	4 x HDMI female
	USB	3 x USB 3.0 Type B female
	Microphone	4 x Audio Jack Female (Pink)
	Speaker	4 x Audio Jack Female (Green)
Console port	Video	1 x HDMI female
	Keyboard/Mouse	1 × USB Type A female
	Microphone	1 x Audio Jack Female (Pink)
	Speaker	1 x Audio Jack Female (Green)
USB Downstream ports		2 x USB 3.0 Type A female
Auto-Scan Interval		5,10,15,20 sec
DDC, DDC2 monitor		Supports DDC2B, max resolution up to 1920x1200
Operating system supported		Win 98/98SE/ME/2000/XP/Vista/2003/7/ 8, Mac OS9/X, Linux, Sun Micro OS
Cables Included		2 sets of USB 3.0, HDMI and audio cable 1 set of HDMI to Macro USB (for MHL function)
Cable Length		1.5M
Power		By External Adaptor
Output Voltage		5V
Output Current		2A
Hot Pluggable		Yes
Device driver		No
Dimensions (LxWxH)		238 x 91 x 54 mm
Unit Weight		860g
