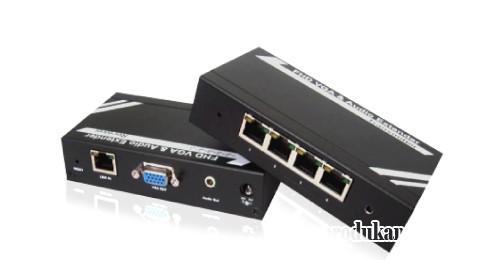

ACAFA FV304T Full HD Long-Range VGA & Audio Extender over CAT.5e/6 (4 ports Transmitter)

It's the latest new designed devices,excellently supports Full HD 1080P,1920X1200@60Hz extending up to 300m

consecutively,and no drive and software installation needed, very easily for user just plug & play.With R.G.B.Auto-

tuned and de-skew function, no need to adjust brightness and contract manually.

	Extends VGA & Audio signals by Cat.5e/6 up to 300m.
	Supports high resolution up to Full HD 1080P,1920X1200@60Hz,extending to 300m consecutively.
	Remote Receiver unit supports video R.G.B.auto-tuned & de-skew function.
	Transmitter supports Local VGA monitoring and audio ports.
	Transmitter supports Local VGA monitoring and audio ports.
	EDID default and refresh learning by Transmitter.
	No software or driver installation required.
	Hot plug & play supported.
	Made in Taiwan.

Model		FV304-Transmitter
Transmitter Connect	VideoOut	1×HDB-15I(Female )
	Video In	1×HDB-15I(male )
	Audio Out	1×Mini Stereo Jack Female(Green)
	Audio In	1×Mini Stereo Jack Female(Green)
Receiver Connect	Video Out	N/A
	Audio Out	N/A
Video Adjustment	Focus	N/A
	Brightness	N/A
Extend Port		4×RJ-45
DDC,DDC2 Screen		Suport DDC,DDC2，DDC2B
CAT. Type & Length		CAT.5e/6，Max Distance：300m
Resolution		Max. Resolution：Full HD 1080P,1920×1200@Hz
Operating systems supported		Windows,Linux,Mac OS/OSX and Sun Microsystems
Power Supply		DC5V / 2A Adaptor
Dimension (L x W x H)		127.5×74×27.7mm
Housing Material		Metal
Operating Temperature		32 - 122°F ( 0 - 50°C )
Humidity		0% - 80% RH
